The final solution - completed.

Well, this is the second and final part of my dust collector retro-fit.

Here you can see the two boxed as I recieved them:
.

.

Here they are unpacked and stacked. I removed the Dust Dog label. I figured that it didn't do anything but restrict air flow. It came off easily
.

.

Here you can see the handle that created some confusion in the first part of this blog.
.

.

As the handle is rotated it makes these "paddles" brush against the pleats of the filter
knocking off the dust into the bottom bag.

.

.

There is a difference in the middle section. First of all it's a larger diameter, plus it doesn't have the corkscrew like the old one.
.

.

Since this is not a Jet dust collector I am retro-fitting I had to add 2 new holes on each side

.

.

Here it is completed minus the lower bag and canister mounted. Took a total of about 1/2 an hour to get to this point. The green tape is on the inside and outside to seal up the unused holes.

.

.

Here it is all completed and in place
.

.
.

There were a few other issues. The old lower bag could not be used since the diameter is larger and it doesn't have the lip (in the lower part of the middle drum) to to retain it using the strap.

It came with 5 heavy gauge plastic bags and a band that fits on the inside on the drum instead of the outside. Interesting design and kind of a pain to install the bag but I guess I'll get used to it.
I hate the idea of having to keep buying expensive plastic bags so I will work something out to eliminate that need.

My cloth bag does fit on the inside diameter so I'll figure out something.

All in all it was a simple and less expensive way to move up to a canister filter vs buying an entire new system.
I'm curious why you didn't consider a stand alone cyclone separator?
It's possible that space is limited but in all honesty, they really work slick.

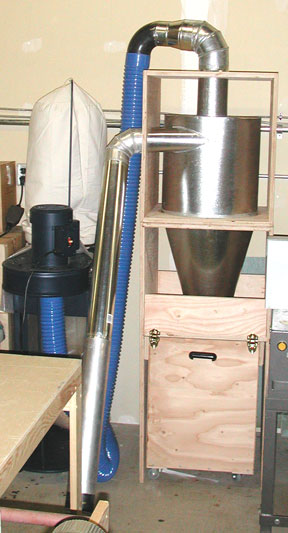

I made this one in a morning and elimnated the bag cleaning fiasco as nothing much gets by the cyclone.
Bob
