The appealing of this box is the surprise of the movement. And everyone who opens the box, takes a breath and Wooooww factor gets in scene. (The problem is that everyone wants one !!)

Pull the drawer, and the tambour rolls back.

http://static.photobucket.com/player.swf

Box is made of cedar scraps from the building of a toolchest that is still in progress. At the same time, the toolchest is being made of recycling of an old corner cabinet that was disassembled 20 years ago when we moved to our current house. Fortunately I kept the lumber in the atic for all this time. But that is another story.

Inspiration came a couple of weeks ago from a clip, where Sandor Nagyszalanczy talks through building the Tambour-Topped Box from the April 2011 issue of Woodworker's Journal. I was able to download the templates from the Magazine page.

Couldn´t resist start building it almost immediately, distracting myself from other projects.
Templates
http://www.woodworkersjournal.com/wp-content/uploads/tambour-box-templates.pdf

Video
http://www.woodworkersjournal.com/making-tambour/

I will not extend myself in the process since the video is self explanatory. Watching Sandor making this thing appears to be a piece of cake. As usual, those who know, make everything appear easy, simple and stupid.

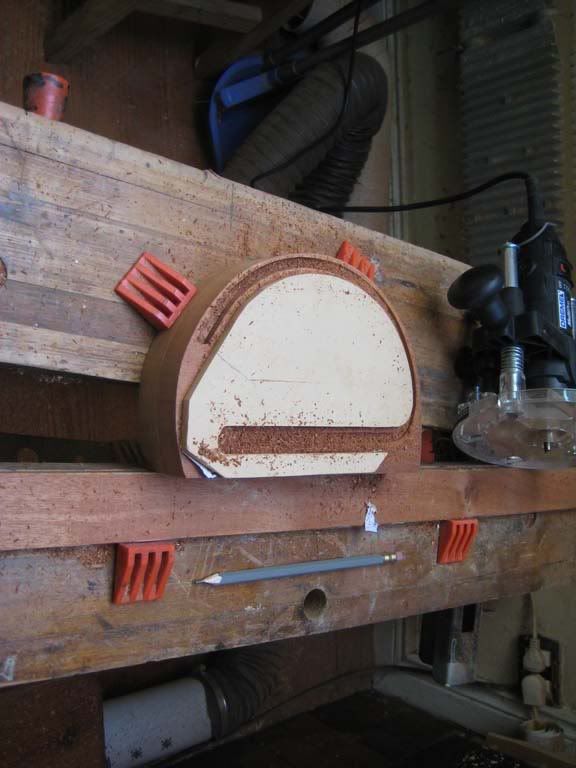

But this is the case. I followed Degoose instructions for cutting (drink twice, don´t bother to cut 20 times), and have a lot of fun. I routed the grooves with a dremel with the plunge attachment. After dry assembling, I made the drawer. It is only a one , so I hand dovetailed it.



I just added some inlays before cutting the slats, and changed the pull of the drawer for a brass one. Finished with sanding sealer.

Measures

H: 15 cm ( 6")

D: 19 cm (7,5")

W: 34 cm (13,5")

Thanks Sandor, and thanks for watching and hope you enjoy.

Addendum PS

The mechanism works well, with a clue. I forgot to mention in the description that I contact cemented a piece of anti-skid to the base of the box. I first try with only four piece in the corners, but were unable to hold in place the box when opening the drawer. Probably that was due to my own inexperience.



Gallery

Comments

·
Registered
Joined
·
1,222 Posts
That's a cool little box there Fernando. Interesting, my only tambour experience is with the Wilson Art products. It's nice how you did this.


·
Registered
Joined
·
9,309 Posts
well done fernando

i can see why it's a hit

i made 50 bread boxes with a similar jig years ago
they are still working some where

thanks for the link

nice little drawer too


·
Registered
Joined
·
1,574 Posts
Great Job Fernando!!


·
Registered
Joined
·
2 Posts
I like the box very much, but the opening mechanism is a kicker. It's way cool-I definitely see that wow-factor you mentioned! :) That would be a great idea for a gift-I put it in my favs. Thanks for the link to a video and templates!


·
Premium Member
Joined
·
20,131 Posts
Neat box!!


·
Registered
Joined
·
1,833 Posts
Great job, I read this article as well and thought how fun. It's on the bucket list, but seems Blondie has a few projects in mind for me before I get to this one. Man I need to retire! LOL

Nice work.


·
Registered
Joined
·
411 Posts
Nice job Fernando I think tambours are brilliant
Best
Trevor


·
Registered
Joined
·
69 Posts
woooowwww :D. My todo list is growing….


·
Registered
Joined
·
230 Posts
That's going on my to do list. Very nice Fernando.


·
Registered
Joined
·
2,185 Posts
Sweet.
That would be anyone's favorite.
You did it proud, and fun to boot.

Steve


·
Registered
Joined
·
36 Posts
WOW! Excellent work and design. The video really shows it well. Congrats. Tks gor sharing.


·
Registered
Joined
·
6,953 Posts
Sweet project, Fernando!

The tamboured top moves effortlessly!!

Lew


·
Registered
Joined
·
6,840 Posts
I absolutely LOVE the way that works!


·
Registered
Joined
·
2 Posts
Not only is the box very attractive, the opening mechanism is quite clever. Well done.


·
Registered
Joined
·
7,151 Posts
Hey Fernando - that is really cool! It's going on my to do list - Thanks!

Jeff


·
Registered
Joined
·
201 Posts
Nice box. I was wondering how the tambour opened before I watched the video. Great idea.


·
Registered
Joined
·
1,074 Posts
Hi Fernando,
Very good technique…. I can see this on most design and thanks for your technique in making the groove.
Well done.


·
Registered
Joined
·
19,680 Posts
Wow very cool super design.Great job.


·
Registered
Joined
·
321 Posts
Thank you all for the comments and encouragement from such qualified persons.. They are if great value to me.

David, 50 bread boxes is a lot of slats !!

Froggy, Ken, Dedalo, Grant and Jeff, definitely pays making one. It took me 2 days, being a Flint-stone hobby woodworker. So senior woodworkers can do that in an eye blink. ;-)

Bert, the next one I´ll include a hexaspiral tambour, Lol

Lew, Charlie, and Puffin, the mechanism works well, with a clue. I forgot to mention in the description that I contact cemented a piece of anti-skid to the base of the box. I first try with only four piece in the corners, but were unable to hold in place the box when opening the drawer. Probably that was due to my own inexperience.





Once again, thank you for passing by
