This is a router guide box for use in the wood lathe to slot/flute wood projects in the chuck or between centers.
It is to be used in conjunction with a plunge router with a 5/8" bushing on the bottom.
It is adjustable up and down to accommodate a 10" max diameter piece. The top plate is also adjustable both ways to follow a taper on a part for cutting parallel to the surface- to a max of 30 degrees or until the top hits the part. I know it needs end stops to control the travel and I made one tryout with it to see where they would best be placed. I decided there will be top end stops cut to the curve of the router base and slotted so they can stop the base in either direction. This is better than having them under the plate which will be full of chips and they would hang down further lessening the angle travel.

It worked pretty slick the first time out. The sample piece is in the 3rd shot taken under the router.

I created the following blog to show the steps in building this fixture:
http://lumberjocks.com/Slovenian/blog/32022

..........................Jim

Gallery

Comments

·
Registered
Joined
·
445 Posts
Jim,

This is another great idea! Looks good for cutting dados, love it!

Keep up the good work!
Your buddy, AJ


·
Registered
Joined
·
246 Posts
Hello Jim

A very nice jig

I must make one like your

And thanks a lot for the blog

The pictures are really a bonus
Do you have a final project using this jig ?
Thanks for sharing


·
Registered
Joined
·
233 Posts
Alllriiight Jim..you got it done. Good for you What I think is just super & I have never seen before is the ability to slant the top..this will be totally useful. GREAT JOB


·
Registered
Joined
·
4,498 Posts
Chris and Fernando,You're welcome!!

AJ, I suppose you could use it for flat work if you clamp a piece under it. Dado's, mortices, you name it. I never thought about that!! You are a real creative thinker!!!!!!!!!!!!!!

Diggerjacks, I don't really have a project in mind but having this fixture opens it up to all kinds of new ideas as long at they fit under the "Big top"

Michelle, Thanks. I'll bet this is similar to what you use. You must also have a flat one for curves for the negative space pieces…....................Jim


·
Registered
Joined
·
5 Posts
Good conceptual design, very practical and useful for precise work, thanks for the idea …


·
Registered
Joined
·
981 Posts
Nice tool, well designed.


·
Registered
Joined
·
4,498 Posts
Well I finished the stops today. I made then out of 1/4 Lexan so I can see through them. They have adjustment slots and a dual pattern of holes so they can be moved even further that the slot allows. I needed them thin so they can clear the spring towers son the plunge router,

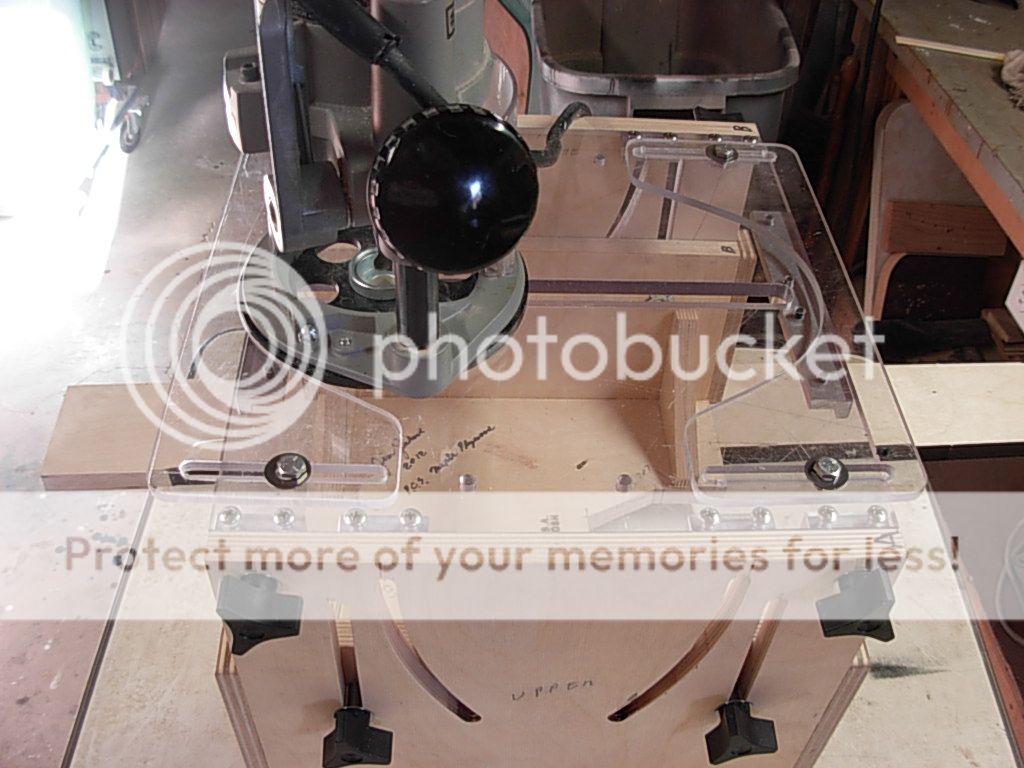

Here is what I came up with to limit the travel of the router in both directions:







·
