My two favorite hobbies, woodworking and golf, have collided. Over the last couple of years, I have attempted to replicate some long nose era golf clubs from the pre-1880 era. I have tried to use traditional methods as best as I could figure it out.

The black stained club on the left is an original putter of the 1870 era which was what I used as a basis for the replicas. All three replicas in the first pic are putters and all beech.

Clubhead: Beech preferred. Apple, pear or thorn wood were also suitable. The beech I used I harvested myself ironically from the golf course I play most often. I have also used pear wood which mills very nicely, but is more brittle. Frame saws, rasps, spokeshaves, scrapers were used for shaping the head.

Shaft: Straight grained hickory, which supplanted ash as the shaft material after the first quarter of the 18th century. Shaft shaped traditionally with handplanes and around 1880, a trapping plane.

Ram's horn for the sole's leading edge (wear strip), 1/8" thick.

7 ply waxed linen thread for the whipping.

Sheepskin leather grip with wool underlisting.

Lead (I opted to use a bismuth and tin alloy from a company called Rotometals for safety concerns) used for the weight in the rear of the clubhead.

Hide glue

Liquid Asphaltum to seal and stain the hickory shaft.

Heads finished with BLO and modern wood stain or Aquafortis (nitric acid with steel particles - dangerous).

For the 1 or 2 that are interested, I have about a half dozen posts on my blog

Below is an xray of the "lead" (actually bismuth tin alloy) which gets poured into the rear of the clubhead. The intersecting holes help to retain the lead.





The shaft traditionally was riven stock tapered and roughly rounded by a handplane.



Working with hickory and hand tools is tough work, so here is a video of me making shafts with this trapping plane from Ashem Crafts

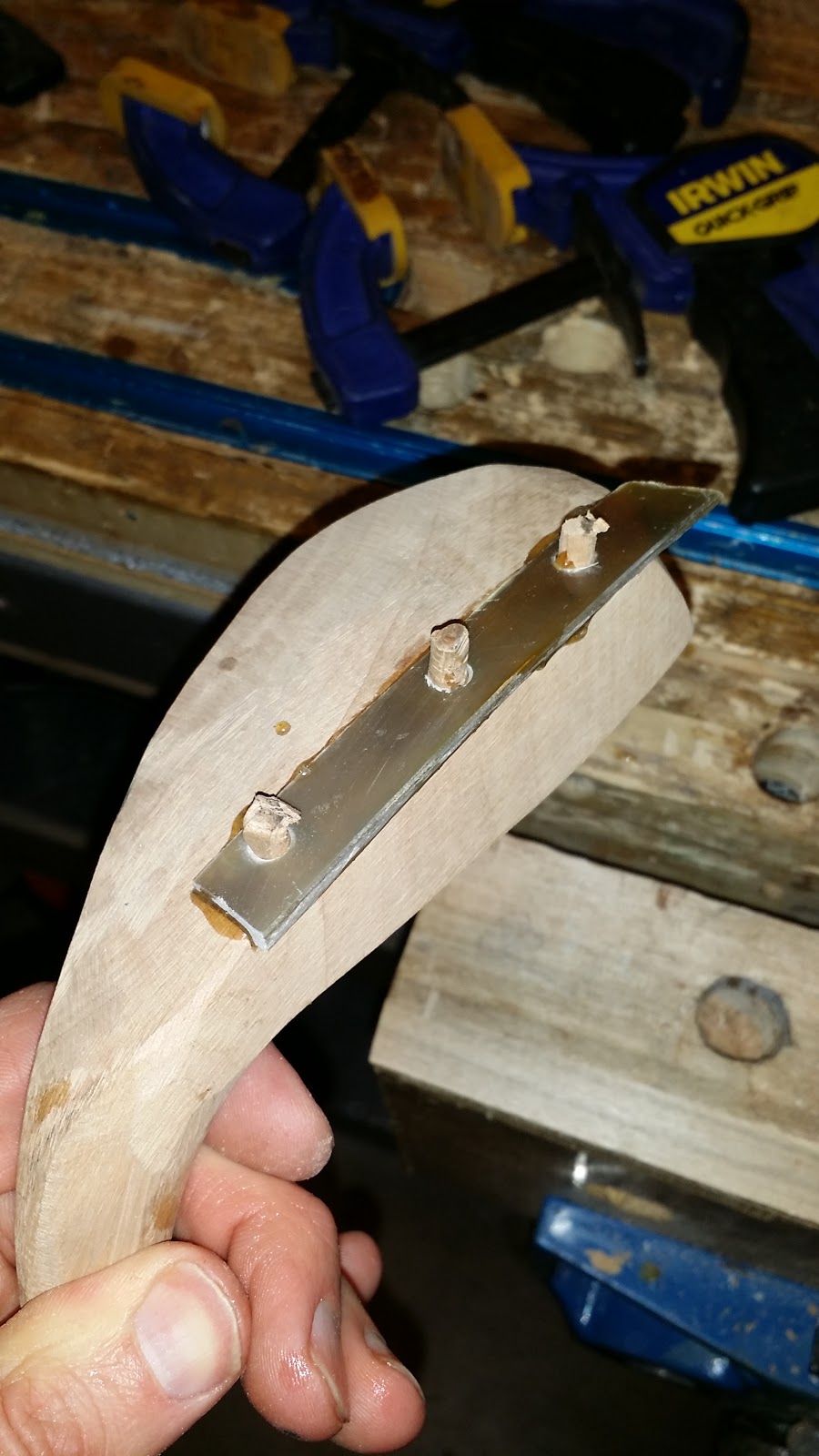

Mortise for protective ramshorn sole plate:







The angled scarf joint that connects the shaft and the clubhead was known as a scare joint. It is glued and wrapped with whipping thread:



Gallery

Comments

· Registered
Joined
·
2 Posts
I am not a golpher but most certainly appreciate the craftsmanship. Well done!


· Registered
Joined
·
122 Posts
Interesting project. I don't know almoust nothing about golf clubs, but those look pretty cool and ''rustic''.


· Registered
Joined
·
3,466 Posts
Nice work. I had the opportunity to buy a bag full of wooden golf clubs for $15 at a yard sale but being ignorant about golf, I decided not to. Probably missed a good investment.


· Registered
Joined
·
11,255 Posts
The re-creation of the wood clubs is very interesting. :)


· Registered
Joined
·
614 Posts
Fascinating. Have you tried using using any of the putters? Are you going to try other clubs?
Steve.


· Premium Member
Joined
·
507 Posts
Cool project. I don't golf but I am impressed anyway.


· Registered
Joined
·
4 Posts
Steve- The putters get good use indoors with occasional ventures out on a real putting green. During the time the actual clubs were used, the greens did not exist like we know them today. They were just trampled down areas of grass close to the hole,

My first full swing with the spoon, like today's 5 wood, resulted in a complete crack across the neck. I have hit some others since and they have held up. 180 to 200 yards or so. This really teaches you to respect the grain when building them.


· Registered
Joined
·
3 Posts
Those are also my two favorite hobbies… Unfortunately, I only ever have enough time for one of them, so I've only played golf once in the last 6 months.

I've always wanted to try something like this - I've definitely bookmarked your project and will come back to it for reference (someday…)

Cheers!
TF


· Registered
Joined
·
4 Posts
TangoFox -I got my start after an ankle sprain shortened my golf season. I will be happy to help you if you decide to get started.


· Registered
Joined
·
4,961 Posts
Nice clubs Elm! When did they start using persimmon for the heads? I have an old set of clubs, a #5 and a #3 that I believe are persimmon. I prefer them over a metal head.


· Registered
Joined
·
4 Posts
Most common clubhead material for woods by era:
Pre 1850: Thorn, apple, pear
1850-1890s: Beech
1890s to 1980's: Persimmon (maple and laminates also used)
1978 "Pittsburgh Persimmon", then titanium
