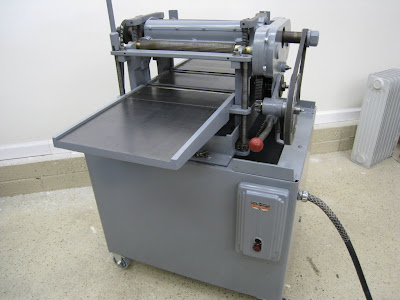

Here's a planer I recently finished. I found this at an auction for 60 bucks! It is an old Craftsman which is actually a Belsaw, later purchased by Powermatic.

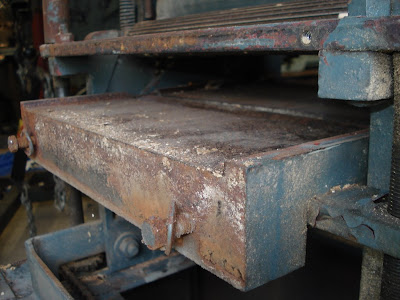

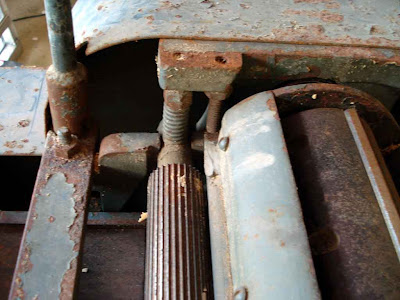

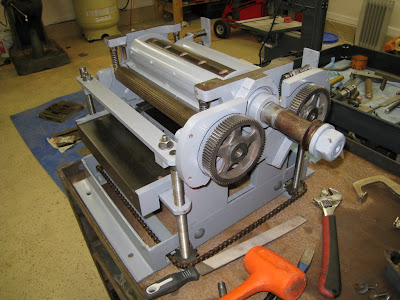

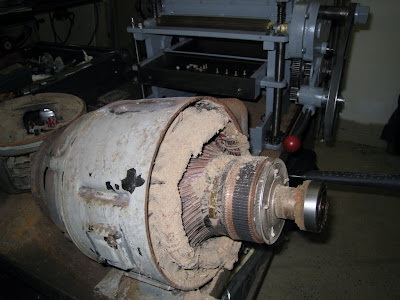

At the auction there were fresh wood chips so I assumed it ran (I know, I know ), but other than that I didn't really have a clue what shape it was in. At some point somebody had spilled a gallon of latex paint on it, which poured through everything all the way down to the motor:( So, I stripped it down completely, cleaned, scraped, and painted it. It's only rattle can gray but it looks way better than it did and it works great. I dialed in the cutters, rollers, and surfaces using a dial indicator and after some minor tweeking… zero snipe :)
















Yes it will have dust collection ;)

Gallery

Comments

·
Registered
Joined
·
11 Posts
Very nice refurb. Nice heavy duty planer that should last you years to come! I've got a couple of old pieces of equipment I need to get around to refurbishing myself, got to find the time ;) Check out http://www.owwm.com/, you might be able to find what it looked like "stock" and info on replacement parts (any that you can't just whip off yourself that is!). I'm actually in the market for a planer, this has given me some inspiration to look out for a used one!


·
In Loving Memory
Joined
·
10,319 Posts
That is fantastic. I wish I could find a good project jointer like that.


·
Registered
Joined
·
1,509 Posts
You've made a diamond out of that unrougher.
Lee


·
Registered
Joined
·
1,388 Posts
Holy smokes, you brought it back from the dead! How long did that take? Wondeful job and project to tackle. Congratulations.


·
Registered
Joined
·
747 Posts
Awesome job WW! Definitely shows that OLD doesn't mean dead when caring hands are applied. How appropriate that you showed us the "Resurrection" of this treasure just after Easter.


·
Registered
Joined
·
27,252 Posts
Tom,

This is a wonderful renovation. I am not sure I would have the courage to attempt a project like this but obviously you are a multi-talented individual. Great job and now you have a nice tool, that has many more years of life in it, and on will give you a lot of woodworking enjoyment.

Thanks for the inspiration.


·
Registered
Joined
·
3,958 Posts
I'm on the prowl for a casting like that. They last a lifetime and you can't buy motors like that now.

Good find and great refurb.

You'll grin every time you use it.

Bob


·
Registered
Joined
·
874 Posts
That looks great, way to keep a piece of OWWM around for future generations.


·
Registered
Joined
·
187 Posts
Tom,

That is a truly impressive result that speaks for itself. Bravo.

2 questions for ya-

  • was this the kind of fixup that required some experience, or was it mostly elbow grease and persistence?
  • did you replace the motor (looks like you kept) or anything else substantial, or keep all the original parts?

-b


·
Registered
Joined
·
16,431 Posts
That is totally amazing! Looking at the before photo, I would have sworn the only use left in that thing was as an anchor for a large boat.


·
Registered
Joined
·
5,351 Posts
That is just sweet. Thanks for the inspiration.


·
Registered
Joined
·
4,452 Posts
Great re-build, Tom. It will serve you well.


·
Registered
Joined
·
71 Posts
Thanks guys,

It was pretty much all labor with the original parts except the 2 bushings I lost?! Belsaw actually still sells the parts and has pdf manuals online if I need them. Honestly it was about 40-60 hours of labor, but a year's worth of time before I finished. . Fortunately I was running out of room in the shop so I had to finish it to free up that space ;)

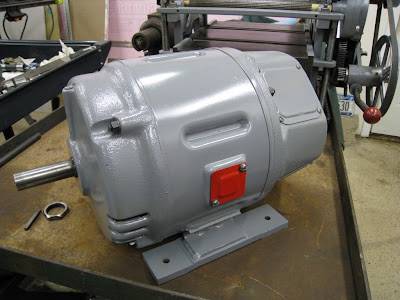

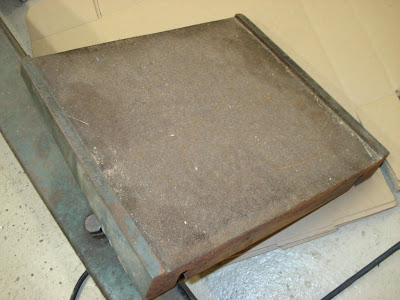

Almost everything cleaned up great with a wire wheel on a 1/2 Hp motor (every nut, screw, and washer!). The table surface took the power of a 4" grinder with a wire brush on it. I definitely kept the original motor, there is nothing that can break on it? The bearings seemed ok, and the brushes are the size of an ice cube :eek: (each with it's own access panel). If you're like me and can never get enough pictures, the whole album is HERE.
