Triangular clamp jig (Vee)

  • Advertise with us
Project by BritBoxmaker posted 04-30-2010 05:34 PM 6165 views 26 times favorited 21 comments Add to Favorites Watch

Just thought I’d post this jig, for clamping triangular glue-ups. As you can see its the one I used on the box tops for the Kaleidascope boxes.

It consists of two pieces of Sapele, re-used from an earlier mitre sawing jig, with their ends cut at 30 degrees.
Giving an included angle of 60 degrees. These are screwed to a piece of 12mm MDF and cross screwed to each other at the sharp end (to avoid them seperating). The end 2 or 3 cm of the whole assembly is then sawn off at 90 degrees giving a flat for the hand-clamp to sit on. The back end of the hand clamp sits on another piece of scrap MDF, spreading the clamping pressure on the glue-up evenly.

Martyn

-- Martyn -- Boxologist, Pattern Juggler and Candyman of the visually challenging.





21 comments so far

View Jason's profile

Jason

659 posts in 3812 days


#1 posted 04-30-2010 05:40 PM

Excellent jig Martyn. Thanks for the info.

-- Jason - Colorado Springs

View patron's profile

patron

13644 posts in 3645 days


#2 posted 04-30-2010 05:42 PM

martyn ,

once again with good help .

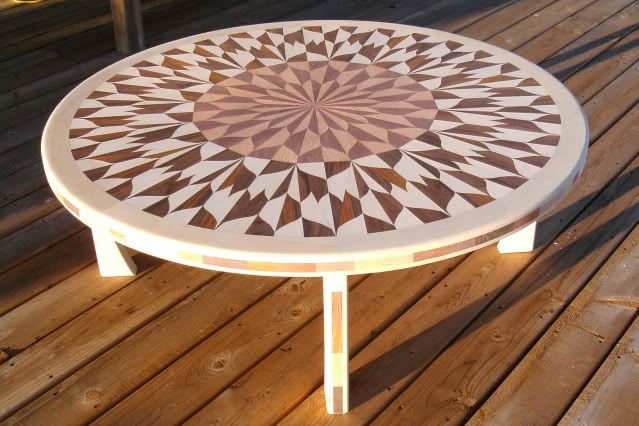

i do this to when needed for star bursts ,

if the parts don’t come toghether here ,
by the time it magnifies around the circle ,
it’s way out !

thanks .

-- david - only thru kindness can this world be whole . If we don't succeed we run the risk of failure. Dan Quayle

View BritBoxmaker's profile

BritBoxmaker

4611 posts in 3340 days


#3 posted 04-30-2010 05:44 PM

David

Do you clamp up to 90 degrees then or just 45 or so? Only reason I ask is that I was going to try 90 degrees but was afraid that the pressure on the glue-up would not be even enough.

Martyn

-- Martyn -- Boxologist, Pattern Juggler and Candyman of the visually challenging.

View jm82435's profile

jm82435

1285 posts in 4046 days


#4 posted 04-30-2010 05:48 PM

Ah, A little of the magic is revealed…

-- A thing of beauty is a joy forever...

View lumberdustjohn's profile

lumberdustjohn

1263 posts in 3470 days


#5 posted 04-30-2010 05:50 PM

Nice post.
Thanks

-- Safety first because someone needs you.

View patron's profile

patron

13644 posts in 3645 days


#6 posted 04-30-2010 06:00 PM

usually to 90 ,
then 180 ,
270 ,
360 .

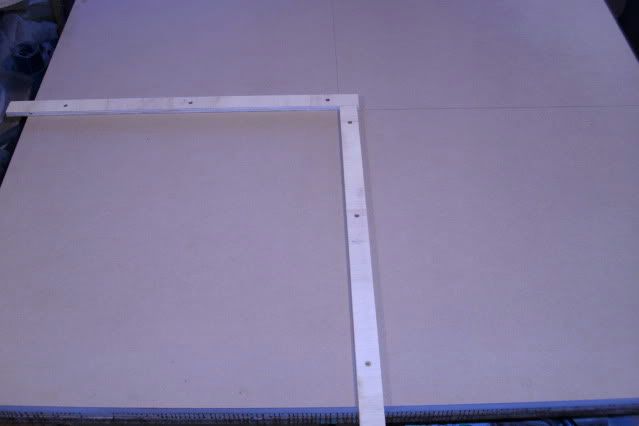

i don’t ‘pressure clamp’ them ,
but use the arm to ’ radius ’ them to the right place ,
then bevel bottom stops (removable later ) ,
to hold them there till glue is set .
you can tap them around until all are in place ,
if you have some slower setting glue .

-- david - only thru kindness can this world be whole . If we don't succeed we run the risk of failure. Dan Quayle

View michelletwo's profile

michelletwo

2779 posts in 3319 days


#7 posted 04-30-2010 06:05 PM

thanks for sharing this..super

View Cozmo35's profile

Cozmo35

2200 posts in 3339 days


#8 posted 04-30-2010 06:09 PM

You guys are brilliant! WOW! I feel like an idiot after lookign at these. THANKS FOR POSTING!

-- If you don't work, you don't eat!.....Garland, TX

View BritBoxmaker's profile

BritBoxmaker

4611 posts in 3340 days


#9 posted 04-30-2010 06:13 PM

Thanks David. Like all good ideas. Simple but effective.

Cozmo, don’t feel bad. Ignorance means you just haven’t seen something yet.

Experience is best when its shared.

-- Martyn -- Boxologist, Pattern Juggler and Candyman of the visually challenging.

View BritBoxmaker's profile

BritBoxmaker

4611 posts in 3340 days


#10 posted 04-30-2010 06:21 PM

By the way this jig also works for the Tapezoidal box tops in ‘Vanishing Point’ but you need a triangular blanking piece at the narrow end of the design, when clamping.

-- Martyn -- Boxologist, Pattern Juggler and Candyman of the visually challenging.

View stefang's profile

stefang

16596 posts in 3638 days


#11 posted 04-30-2010 06:42 PM

Seeing work like this makes me think I need a new tool, namely a better quality, larger brain. If I find one, I will do a review on it. Thanks for sharing your secrets with us.

-- Mike, an American living in Norway.

View jm82435's profile

jm82435

1285 posts in 4046 days


#12 posted 04-30-2010 08:48 PM

yikes

-- A thing of beauty is a joy forever...

View BritBoxmaker's profile

BritBoxmaker

4611 posts in 3340 days


#13 posted 04-30-2010 08:53 PM

quite

-- Martyn -- Boxologist, Pattern Juggler and Candyman of the visually challenging.

View degoose's profile

degoose

7253 posts in 3658 days


#14 posted 04-30-2010 10:19 PM

So simple yet so effective… as are all things once you think them through.
I thank you for sharing your ideas and jigs..
I have a similar set up for hextagonal boards….ie for tumbling block trevits etc.

-- Don't drink and use power tools @ lasercreationsbylarry.com.au

View Kent Shepherd's profile

Kent Shepherd

2718 posts in 3590 days


#15 posted 04-30-2010 10:40 PM

Good idea

Thanks

-- http://shepherdtoolandsupply.com/
